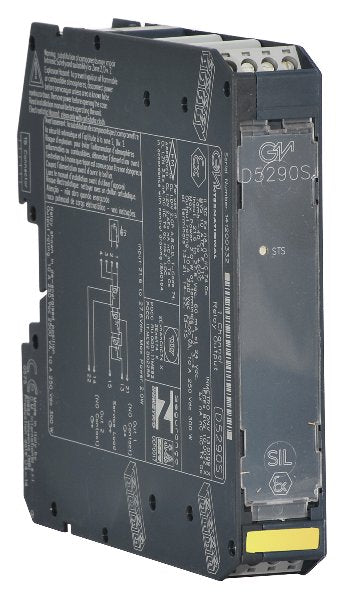

D5290S

SIL3 Relay Out Module for 10 A NE Loads

The D5290 is a relay module suitable for switching safety related circuits, up to SIL 3 level, for high risk industries. It provides isolation between input and output contacts. It makes available two NO contacts for Normally Energized (NE) loads, in order to disconnect the load on both supply lines, and a NC contact for service purpose. A wide compatibility towards different DCS/PLC is guaranteed: driving pulse testing is permitted by a dedicated internal circuit, which prevents contact and LED flickering. This relay module is not suitable for low-current consumption applications (system-to-system signalling, driving LEDs, etc.).

• SIL 3 / SC 3 for NE loads with NE driver
• Installation in Zone 2/Div. 2
• Up to 10 A functional / 16 A inrush current
• Load disconnection on both supply lines available
• Compatible with DCS/PLC pulse testing
• Service contact available
• Input/Output isolation
