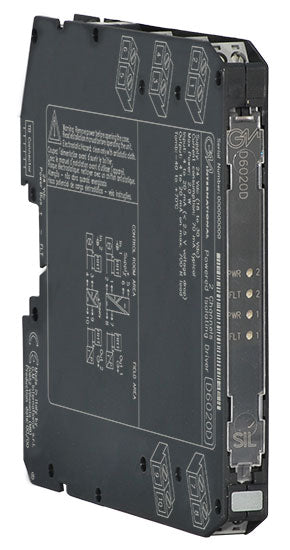

SIL2 HART® Isolating Driver
The Isolating Driver D6020 module is a high integrity analog output interface suitable for applications requiring SIL 2 level in safety related systems for high risk industries. It isolates and transfers a 4- 20 mA signal from a controller to a load. It has a high output capacity combined with a low drop across its input terminals. The circuit allows bi-directional communication signals, for HART® smart positioners. Line and load open/short circuit detection is provided: the fault in the field is directly mirrored to the PLC AO and it is also reported by opening the fault output.
| SIL | SIL2 |
| Operating Temperature | -40...+70 °C |
| Output Type | 2 wire passive |
| Supply Voltage | 24 Vdc |
| Output Range | 4-20 mA |
| Input Range | 4-20 mA |
| Input Type | Source mode |
| Channels | 2 N. |
