TB-D5016-TRI-006

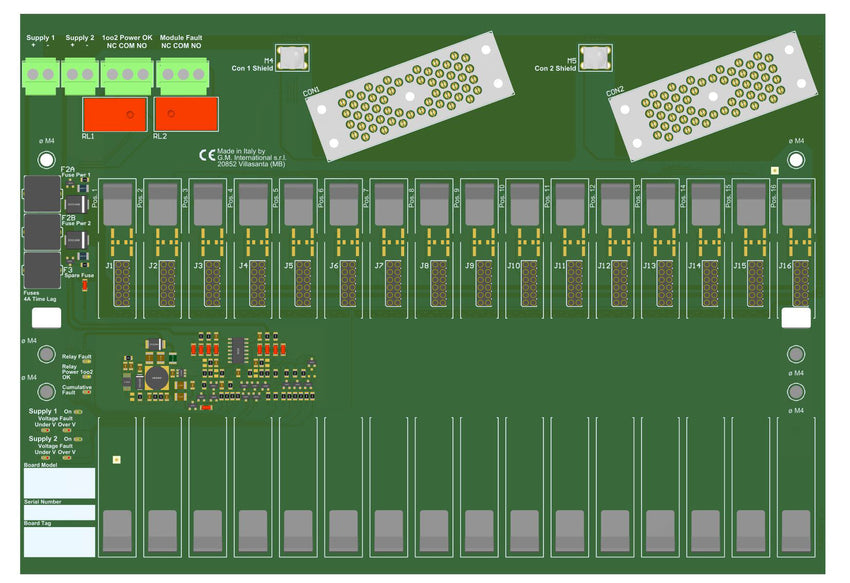

Termination Board 16 positions for
Triconex TMR with
DI cards 3503E, 3505E

This Termination Board (TB) provides direct connection between the I/O Card of the system and D5000 Series modules. Intrinsically Safe protection and signal isolation between Safe and Hazardous Area are provided by D5000 Series Associated Apparatus. 24 Vdc Power Supply of the TB is connected to two plug-in terminal blocks, for a redundant power supply. The power supply for modules is given by TB power bus.

  • 3503E, 3505E DI Cards, 32 ch. board interfaces.
  • 16 positions Termination Board for up to 32 channels.
  • Power supplies fault monitoring.
  • Spare fuse provided.
  • Mounting hardware provided for:
  • Wall mounting, M4 thread screw;
  • Wall mounting, M4 self tapping screw;
  • Single Din Rail mounting kit.

Datasheet
Product page

Technical Specification

Supply Voltage 24 Vdc
