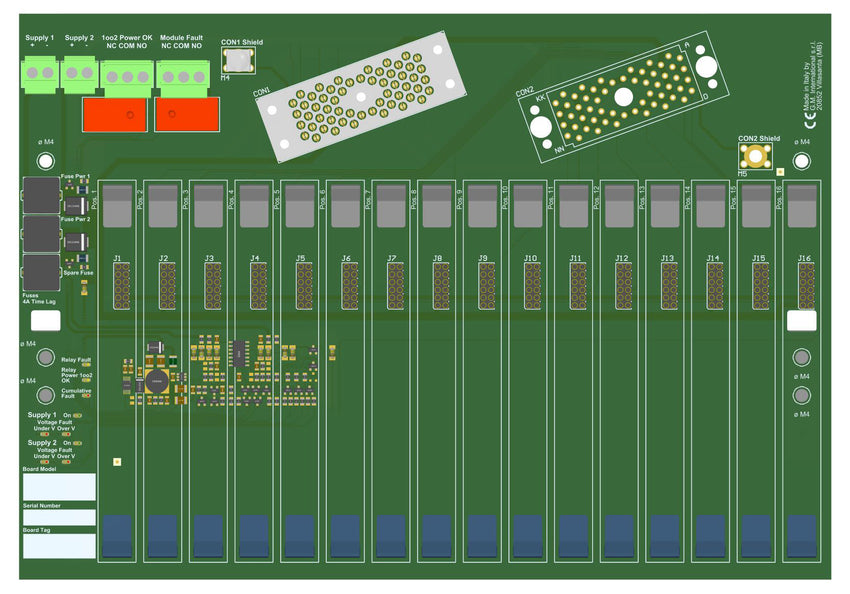

TB-D5016-TRI-007

Termination Board 16 positions for
Tricon DO cards 3604E, 3624, 3625,
3664, and Tricon CX card 3626X

This Termination Board (TB) provides direct connection between the I/O Card of the system and D5000 / D6000 Series modules. The Intrinsically Safe protection and signal isolation between Safe and Hazardous Area, is provided by D5000 Series Associated Apparatus. The 24 Vdc Power Supply of the TB is connected to two plug-in terminal blocks, for a redundant power supply. The power supply for modules is given by TB power bus.

• Tricon and Tricon CX DO Cards board interfaces.
• 16 positions Termination Board for up to 16 channels,
• to be used in pairs to obtain 32 channels.
• Power supplies fault monitoring.
• Spare fuse provided.
• Mounting hardware provided for:
• Wall mounting, M4 thread screw;
• Wall mounting, M4 self tapping screw;
• Single Din Rail mounting kit.
