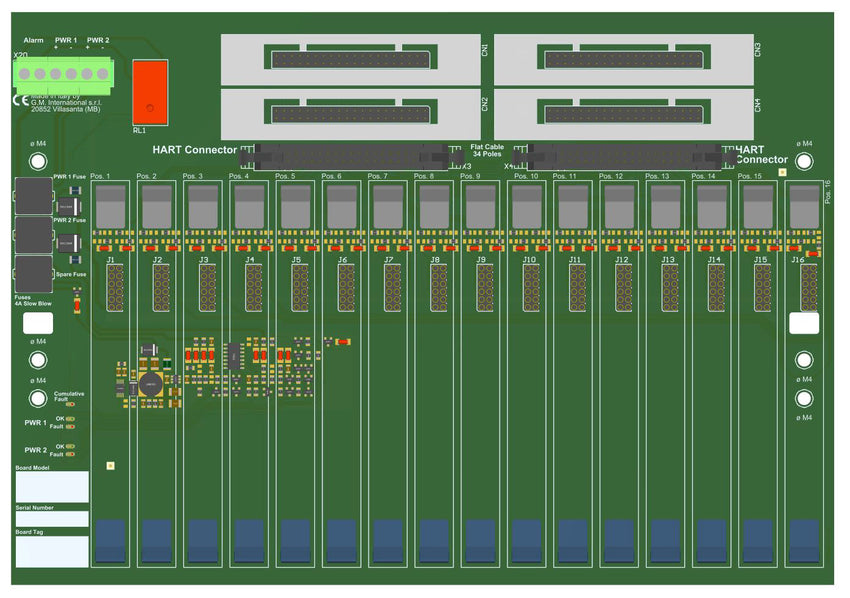

TB-D5016-YOK-011

Termination Board 16 positions for
Yokogawa Centum VP with
Analog Input card AAV141

This Termination Board (TB) provides direct connection between the I/O Card of the system and D5000 Series modules. The Intrinsically Safe protection and signal isolation between Safe and Hazardous Area is provided by D5000 Series Associated Apparatus. The 24 Vdc Power Supply of the TB is connected to two plug-in terminal blocks, for a redundant power supply. The power supply for modules is given by TB power bus.

• 2 x AI card type AAV141 (16 channels) AI board
• interface.
• 16 positions Terminal Board for up to 32 channels.
• Power supplies fault monitoring.
• Spare fuse provided.
• Mounting hardware provided for:
• Single Din Rail mounting kit.
• Wall mounting, M4 self tapping screw;
• Wall mounting, M4 thread screw;
