TBE-D5016-TRI-002
TBE-D5016-TRI-002

G.M. International

TBE-D5016-TRI-002

Sale price €1.592,00

Use this text to display some key features of the products

TBE-D5016-TRI-002

SIL3 16+16-pos Term. Board for Tricon AI cards 3704E and 3720

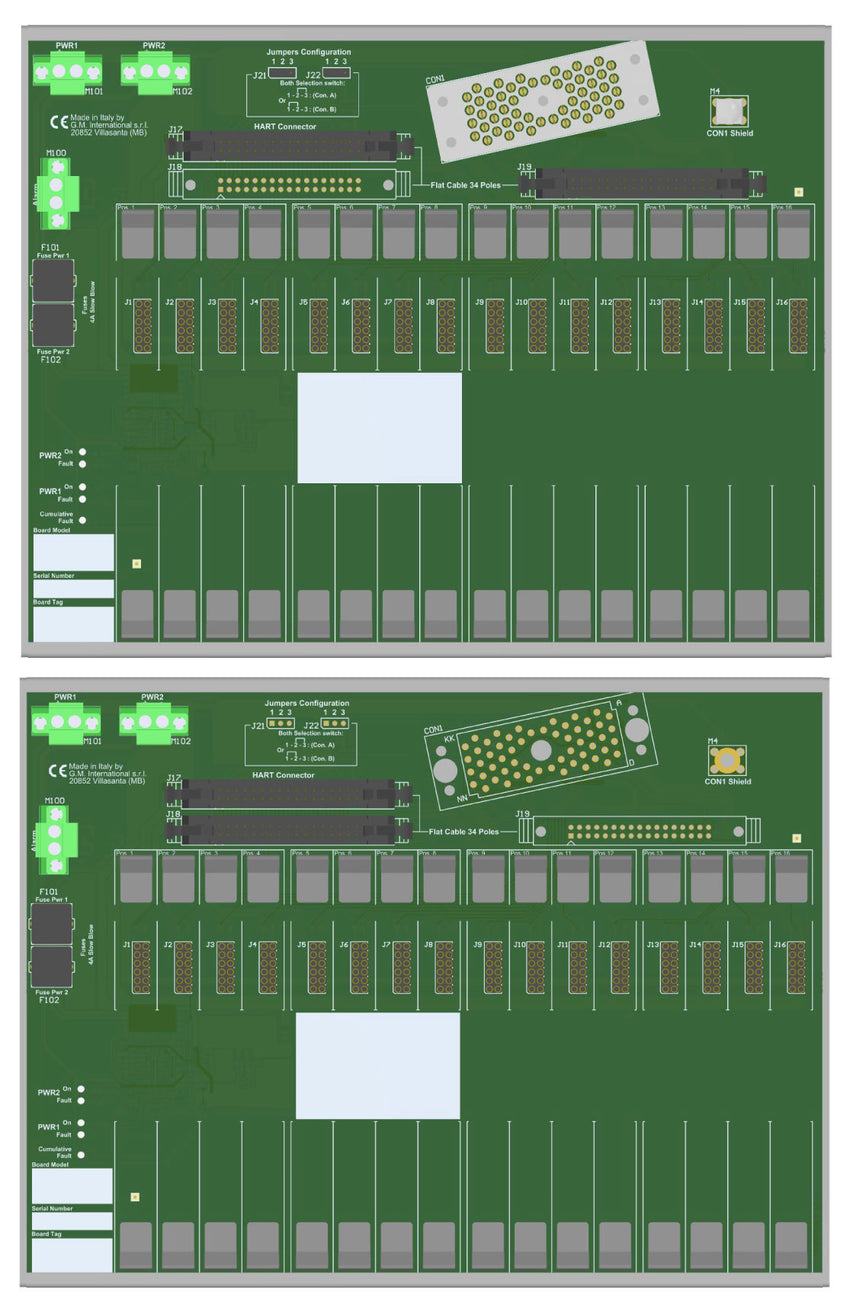

This Termination Board with Enclosure (TBE) provides direct connection between the I/O Card of the system and D5000 / D6000 Series modules. The Intrinsically Safe protection and signal isolation between Safe and Hazardous Area, is provided by D5000 Series Associated Apparatus. The 24 Vdc Power Supply of the TBE is connected to two plug-in terminal blocks, for a redundant power supply.

  • SIL 3 / SC 3
  • Zone 2/Div. 2 Installation
  • Tricon AI Cards board interfaces
  • Connection to external GMI HART® Mux 5700
  • 16+16 positions Termination Board for up to 32 channels
  • Power supplies fault monitoring
  • Mounting hardware provided for single DIN Rail mounting kit

Datasheet
Instruction manual
Product page

Technical Specification

Supply Voltage 24 Vdc
