TUE-32-INV-001

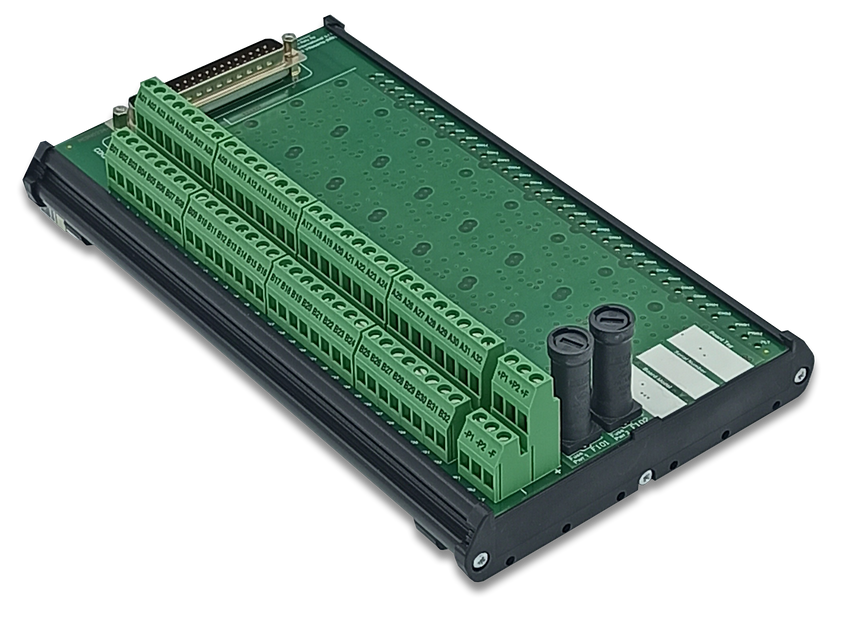

32-pos Term. Unit for Foxboro DI card FBM217

This Termination Unit with Enclosure (TUE) provides galvanic isolation through opto-couplers between the I/O Card of the system and the field terminals for Digital Input applications. It supports free-voltage contacts as well as NAMUR proximity sensors. The status (open or closed) of each channel is also indicated through individual LEDs. Redundant power supply with voltage monitoring is supported.

  • Foxboro DI Card board interface
  • 32 positions Termination Unit for up to 32 channels
  • Field terminals for free-voltage contacts and NAMUR proximity sensors
  • Field/System isolation
  • Power supplies redundancy
  • Power supplies voltage monitoring
  • Active current limitation against sensor vs. board supply accidental short

Datasheet
Instruction manual
Product page

Technical Specification

Supply Voltage 24 Vdc
