X1-TB-08-FOX-04

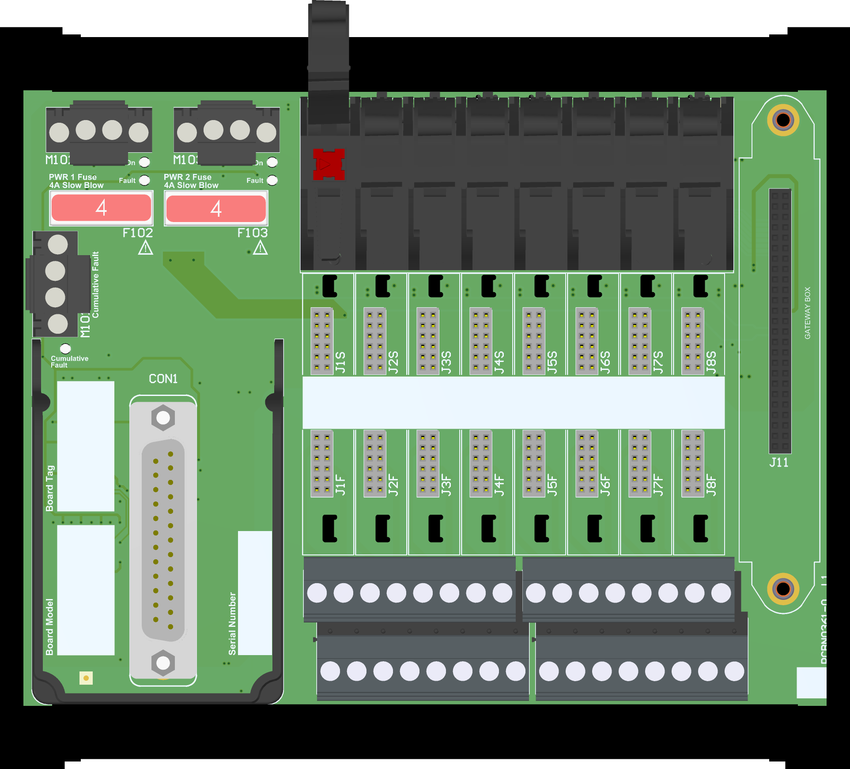

I.S. 8-pos X1-Series Term. Board for Foxboro FBM200
AO Card FBM215/FBM218/FBM237

This Termination Board (X1-TB) provides direct connection between the I/O Card of the system and X1-Series modules. Intrinsically Safe protection and signal isolation between Safe and Hazardous Area is provided by Associated Apparatus (X1-IS), while simple galvanic isolation or conditioning is provided by Repeaters/Converters (X1-NIS). The 24 Vdc Power Supply of the X1-TB is connected to two plug-in terminal blocks, for redundant power supply. A monitoring circuit activates a cumulative fault in case of supply or module failure. The board can host a gateway belonging to the X1-GW series for module identification, configuration and monitoring.

• Input from Zone 0 / Division 1
• Installation in Zone 2 / Division 2
• Foxboro FBM200 AO Card board interface
• 8 positions interface for up to 8 channels
• Lower cables installation and maintenance costs
• Power supplies fault monitoring
• Single loop disconnection to ease maintenance operations
• X1-GW Gateway optional for id/config/monitor/HART®
• Three port isolation, Input/Output/Supply
