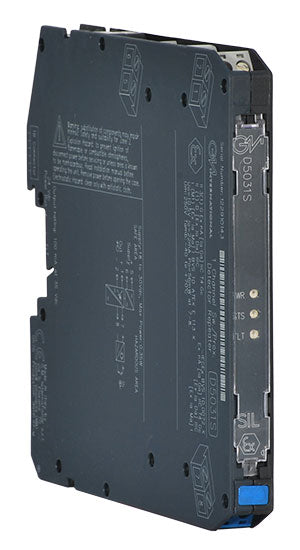

D5031S

I.S. SIL3 Switch/Proximity Transistor-Out Repeater

The Switch/Proximity Detector Repeater D5031 is a module suitable for applications requiring SIL 3 level in safety related systems for high risk industries. The unit can be configured for switches or proximity detectors, located in Hazardous Area, and repeats the input state to an open-collector transistor in Safe Area. The selectable fault detection circuit is available for proximity sensors or switches equipped with end of line resistors. In the double-channel model, the second output can be configured to repeat the second input, to duplicate the first input or to report the first input fault. If needed, the output can also be inverted.

• SIL 3 / SC 3
• Input from Zone 0/Div. 1
• Installation in Zone 2/Div. 2
• High frequency transistor output
• Field open and short circuit detection
• In-field programmability by DIP Switch
• Three port isolation, Input/Output/Supply
