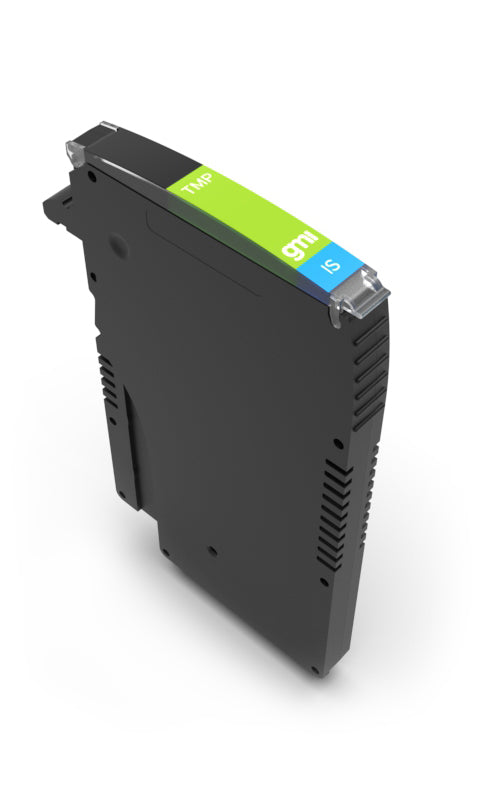

X1-IS-TMP-01-S

I.S. SIL2 Temperature Converter

The Temperature Converter X1-IS-TMP-01 module accepts a low level dc signal from millivolt, thermocouple or 2/3/4-wire resistance/RTD or transmitting potentiometer sensor, located in Hazardous Area. After linearizing it, the module generates, with isolation, a proportional 0/4-20 mA current to the system AI card, suitable for applications requiring SIL 2 level in safety related systems for high risk industries. Output current signal can be direct or reverse. A fault can be issued in case of input sensor burnout (on any wire) or when configurable thresholds are exceeded. If required, the unit can be re-calibrated through X1 Series Gateway family X1-GW. To ease maintenance operations, field devices can be disconnected through a two-position insertion/extraction mechanism. This product requires a dedicated Termination Board.

• SIL 2 / SC 3
• Input from Zone 0 / Division 1
• Installation in Zone 2 / Division 2
• Loop disconnection to ease maintenance operations
• Programmable fault in case of burnout or threshold exceeding
• mV, TC, 2/3/4-wire resistance/RTD or potentiometer input
• Inversion/scaling/custom output current
• Mechanical polarization key to prevent destructive mismatches
• Fully programmable through Gateway
• High Accuracy
• Three port isolation, Input/Output/Supply
