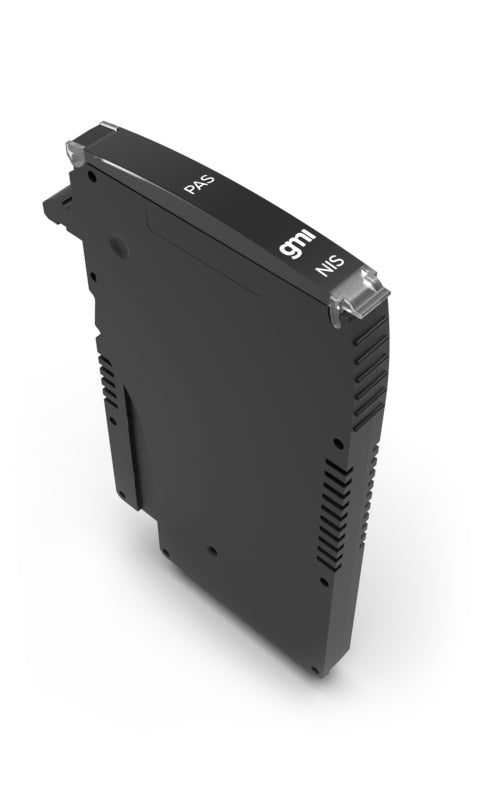

X1-NIS-PAS-03-S

SIL3 Pass-Through Module 500 mA
with Over-Voltage/Over-Current Protections

The Pass-Through X1-NIS-PAS-03 module puts into direct connection the system with the field for a flexible marshalling. It is suitable for applications requiring SIL 3 level in safety related systems for high risk industries. It also provides over-voltage and over-current protections, with loop current up to 500 mA, and it can supply the field device, e.g. 3/4-wire transmitters, through the Termination Board power. To ease maintenance operations, field devices can be disconnected through a two-position insertion/extraction mechanism. This product requires a dedicated Termination Board.

• SIL 3 / SC 3
• Installation in Zone 2 / Division 2
• Loop disconnection to ease maintenance operations
• Over-voltage and over-current protections
• Loop current up to 500 mA
• Suitable for any field device, including 3/4-wire transmitters
• Two port isolation, InOut/Supply
