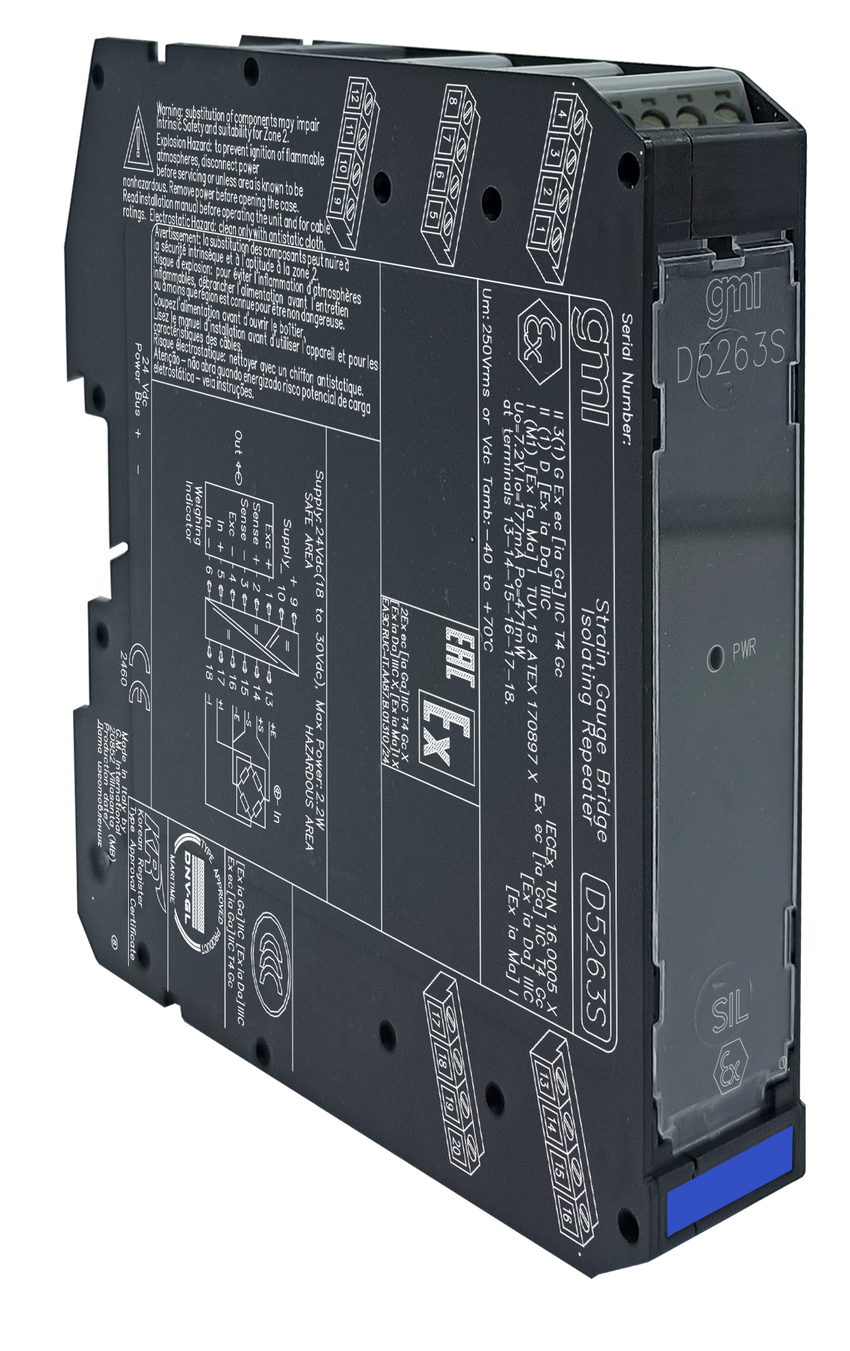

D5263S

I.S. SIL2 Load Cell/Strain Gauge Bridge Repeater

The Load Cell/Strain Gauge Bridge Repeater D5263 module is a unit suitable for applications requiring SIL 2 level in safety related systems for high risk industries. The unit acts as a transparent galvanic isolated interface installed between a weighing indicator in Safe Area and a load cell (or group of load cells) in Hazardous Area; it appears at the terminals of the indicator as a single load cell equivalent to the one in the field. It provides a fully floating power supply voltage with remote sensing capability to load cell located in Hazardous Area and repeats, while isolating, the mV signal output to drive a load in Safe Area depending on the host system reference voltage. Up to four 350 Ω load cells, or five 450 Ω load cells, or ten 1000 Ω load cells can be connected in parallel. The Voltage reference (Safe Area side) is set as an external supply.

• SIL 2 / SC 3
• Input from Zone 0
• Installation in Zone 2
• Strain Gauge Bridge Transparent Repeater
• Up to four 350 Ω load cells in parallel
• High Accuracy
• Three port isolation, Input/Output/Supply
