D1014S
D1014S

G.M. International

D1014S

Sale price €257,00

Use this text to display some key features of the products

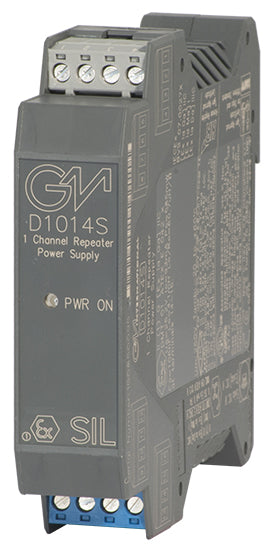

D1014S

SIL 2 Repeater Power Supply Hart compatible DIN-Rail

The single and dual channel DIN Rail Repeater Power Supply, D1014S and D1014D is a high integrity analog input interface suitable for applications requiring SIL 2 level (according to IEC61508:2010) in safety related system for high risk industries. Provides a fully floating dc supply for energizing conventional 2 wires 4-20 mA transmitters located in Hazardous Area, and repeats the current in floating circuit to drive a Safe Area load. The circuit allows bi-directional communication signals, for Hart transmitters.

  • SIL2 /SC3
  • Input from Zone 0 (Zone 20), Division 1, installation in Zone 2, Division 2.
  • 4-20 mA Input, Output Signal.
  • HART® compatible.
  • In-field programmability by DIP Switch.

Datasheet
Instruction manual
Product page

Technical Specification

SIL SIL2
Operating Temperature -20...+60 °C
Output Type Source mode
Supply Voltage 12 Vdc
Output Range 4-20 mA
Input Range 4-20 mA
Input Type 2 wire active
Channels 1 N.
