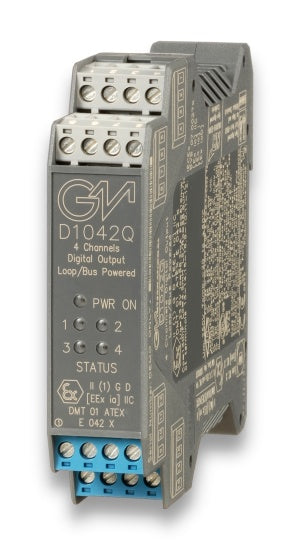

D1042Q

SIL 3 - SIL 2 Digital Output Loop / Bus Powered DIN-Rail Models

The D104* series are quad channel DIN Rail Digital Output Modules enabling a Safe Area contact, logic level or drive signal, to control a device in Hazardous Area, providing 3 port isolation (input/output/supply). Typical applications includes driving signalling LED’s, visual or audible alarms to alert a plant operator or driving a solenoid valve or other process control devices. It can also be used as a controllable supply to power measuring or process control equipments in Hazardous Area. Output channels can be paralleled if more power is required; 2 or 3 channels in parallel (depending on the model) are still suitable for Gas Group II C. Four basic models meet a large number of applications: it is possible to obtain 16 different combinations of safety parameters and driving currents.

• SIL2 /SIL3
• Input from Zone 0 (Zone 20), Division 1, installation in Zone 2, Division 2.
• Voltage input, contact, logic level, common positive or common negative, loop powered or bus powered.
• Flexible modular multiple output capability.
• Output short circuit proof and current limited.
