D1092D-069

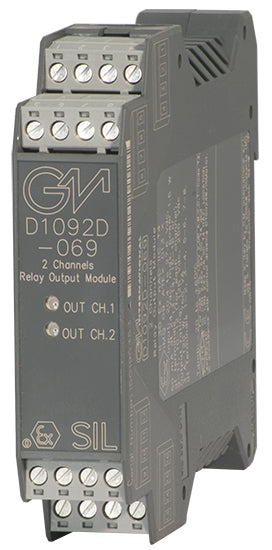

SIL 3 Relay Output Module DIN-Rail
Model D1092D-069

The single and dual channel DIN Rail Relay Output, D1092S-069 and D1092D-069 are relay modules suitable for the switching of safety related circuits, up to SIL 3 level according to IEC61508:2010 Ed. 2, for high risk industries. Isolation is provided between input and output contacts, and between the two channels of D1092D-069. Compatibility with specific DO cards with pulse testing needs to be verified. This relay module is not suitable for low-current consumption applications (system-tosystem signalling, driving LEDs, etc.).

  • SIL3/SC3
  • Installation in Zone 2, Division 2
  • 2 fully independent channels.
  • 1 SPST NO contact and 1 SPST NC contact for each channel.
  • 5 A inrush current at 30 Vdc / 250 Vac.

Datasheet
Instruction manual
Product page

Technical Specification

SIL SIL3
Max Contact Rating 3 A
Operating Temperature -20...+60 °C
Output Type Volt. free SPST NO+SPST NC Relay
Input Range 24 Vdc
Channels 2 N.
