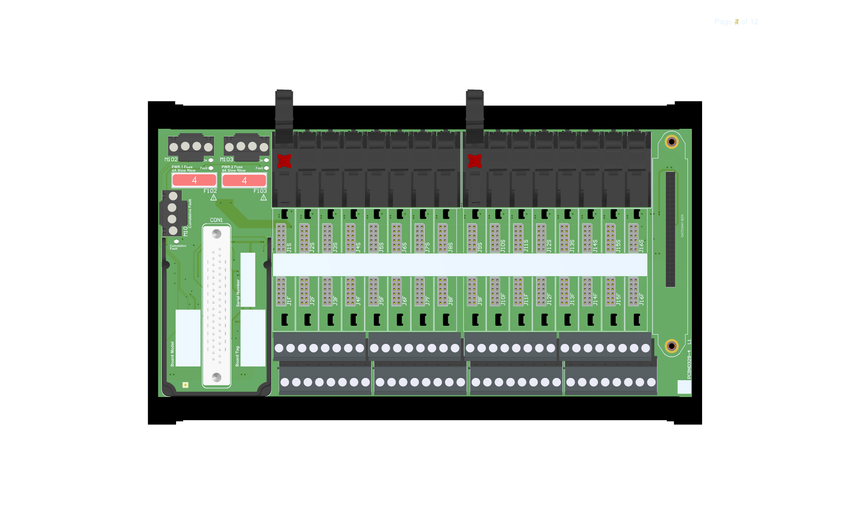

X1-TB-16-GMI-01

I.S. SIL3 16-pos Sink-Type Term. Board for X1-Series

This Termination Board (X1-TB) provides direct connection between the I/O Card of the system and X1-Series modules. The Intrinsically Safe protection and signal isolation between Safe and Hazardous Area is provided by X1-Series Associated Apparatus (X1-IS). The 24 Vdc Power Supply of the X1-TB is connected to two plug-in terminal blocks, for a redundant power supply. A monitoring circuit activates a fault in case of supply or module failure. The board can host a gateway belonging to the X1-GW series for module identification, configuration, monitoring, and HART® communication.

• SIL 3 / SC 3
• Input from Zone 0 / Division 1
• Installation in Zone 2 / Division 2
• UIO Card board interface for up to 16 channels
• Lower cables installation and maintenance costs
• Power supplies fault monitoring
• Single loop disconnection to ease maintenance operations
• X1-GW Gateway optional for id/config/monitor/HART®
• Three port isolation, Input/Output/Supply
