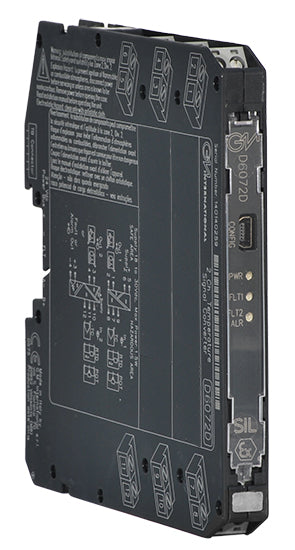

SIL2 Multifunction Temperature Converter

The Multifunction Temperature Converter D6072 accepts a low level dc signal from millivolt, thermocouple or 2-3-4 wire resistance/RTD or transmitting potentiometer sensor and converts, with isolation, the signal to drive a load, suitable for applications requiring SIL 2 level in safety related systems for high risk industries. Output signal can be direct or reverse. Modbus RTU RS-485 output is available on Bus connector. Cold junction compensation can be programmed as Internal: provided by an internal PT1000 sensor; Fixed: to a usercustomizable temperature value; External remote: ext. RTD placed away, on a support terminal board; External local: ext. RTD placed close to the module terminal block; Other: connecting compensation RTD to one of the two ch. For D6072D module: duplicator function provides two independent outputs from one single input. Output function can be configured as: Adder, subtractor, low/high selector. Modules are provided with alarm function, which is available via photoMOS output.

• SIL 2 / SC 3
• Installation in Zone 2
• Installation in Div. 2
• mV, TC, 2/3/4wire res./RTD or potentiometer input
• Duplication/inversion/scaling/custom output
• Selectable CJC: internal PT1000, external RTD or fixed
• High Density, two channels per unit
• Burnout/internal/cjc/in sensor fault monitor
• Alarm output with user-settable trip points
• Modbus RTU RS-485 for monitor & configuration
• Fully programmable operating parameters
• High Accuracy, µP controlled A/D converter
• Three port isolation, Input/Output/Supply
