D6264S

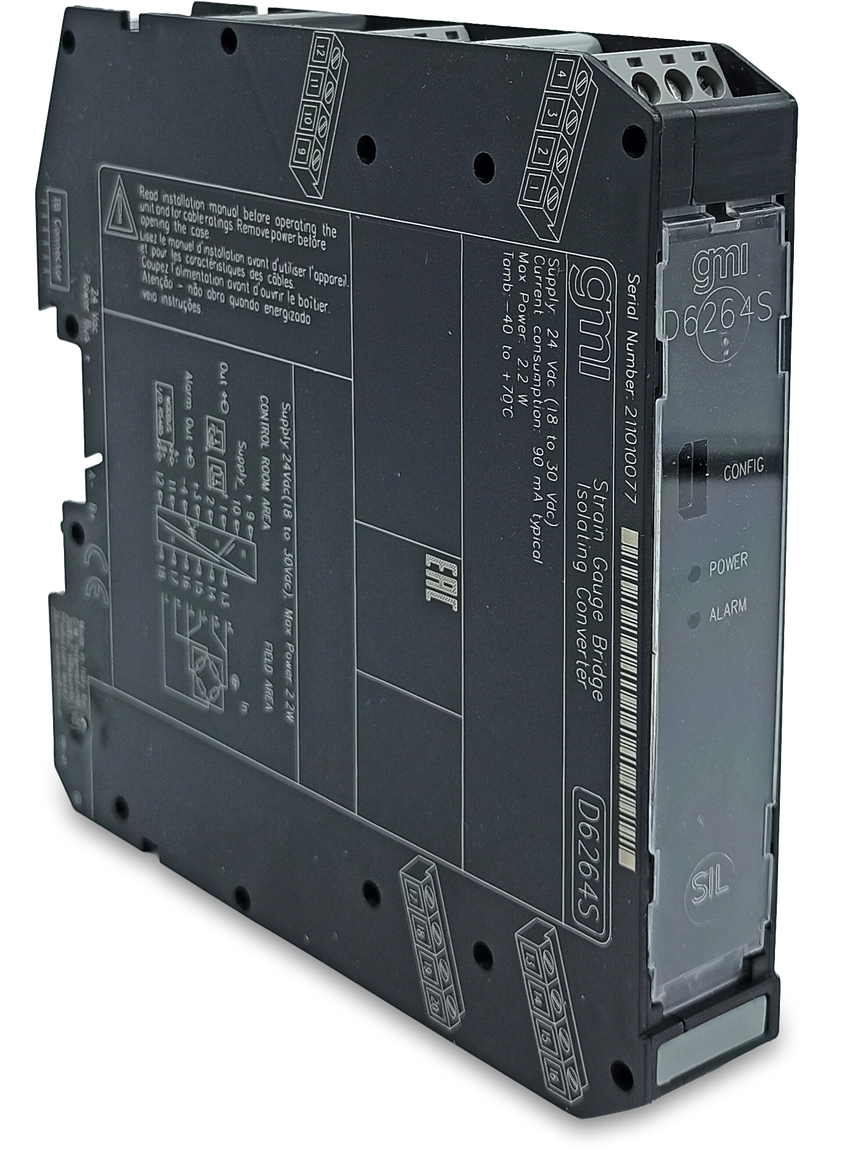

SIL2 Load Cell/Strain Gauge Bridge Converter

The Load Cell/Strain Gauge Bridge Converter D6264 module is a unit suitable for applications requiring SIL 2 level in safety related systems for high risk industries. The unit acts as a galvanically isolated interface installed between a PLC/DCS and a load cell (or a group of load cells). Up to four 350 Ω load cells, or five 450 Ω load cells, or ten 1000 Ω load cells can be connected in parallel. It provides a fully floating power supply voltage with remote sensing capabilities to load cells and converts the mV signal from the load cell into a 0/4-20 mA, providing both current source and sink capabilities. The module is also provided with PhotoMOS alarm output. A modbus output is also provided to interface the PLC/DCS using digital communication.

• SIL 2 / SC 3
• Strain Gauge Bridge Isolated Converter
• Up to four 350 Ω load cells in parallel
• 0/4-20 mA sink/source output current
• Modbus RTU RS-485 for monitor & configuration
• Fully programmable operating parameters
